Brigade Backeye 360 Camera System With 7" Monitor

Brigade Backeye 360 Camera System With 7" Monitor Slide Image
Brigade Backeye 360 Camera System With 7" Monitor Slide Image
Brigade Backeye 360 Camera System With 7" Monitor Slide Image
Brigade Backeye 360 Camera System With 7" Monitor Slide Image
Brigade Backeye 360 Camera System With 7" Monitor Slide Image
Brigade Backeye 360 Camera System With 7" Monitor Slide Image
Brigade Backeye 360 Camera System With 7" Monitor
SE-770-100

Commercial vehicles, trucks, trailers, tractors, buses and coaches

| 70mph
OTHERS IN THIS RANGE
Part No. Description

BN360-L110

10m cable

BN360-200

Backeye 360 system without cables or monitors

95 Logo

Description

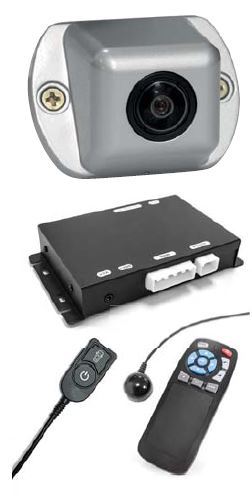

Contents:
• 1 x BN360-200 360 system (click HERE for detailed contents)
• 1 x VBV-770DM - 7" monitor
• 1 x BN360-L110 - 10m camera cable
• 2 x BN360-L115 - 15m camera cable
• 1 x BN360-L120 - 20m camera cable

Features

• 360 image
• 19 different view modes
• 4 pre-defined configuration groups
• Configure & custom set up via monitor and IR remote control
• Left, right, reverse & speed signal triggers
• Configurable on-screen parking markers
• 3 x video outputs
• Ultra-wide viewing angle cameras (HxV) 185 x 142
• TV system: NTSC & PAL (via switch)

Dimensions

L 174 x H 101 x D 30mm

Alternatives / Accessories

A kit is available that does not contain cables or monitors HERE. This system is NTSC. If you choose to add additional cameras they must also be NTSC.

Aftercare

A calibration kit is required for installation. Please contact us for more details.
