Brigade Backeye 360 Camera System
BN360-200

Commercial vehicles, trucks, trailers, tractors, buses and coaches

| 70mph
OTHERS IN THIS RANGE
Part No. Description

BN360-L110

10m cable

SE-770-100

Complete camera and monitor system

95 Logo

Description

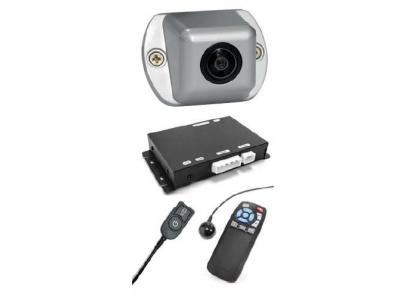

Contents:

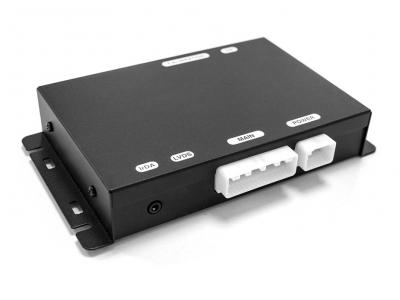

• 1 x ECU (174 x 101 x 30mm)

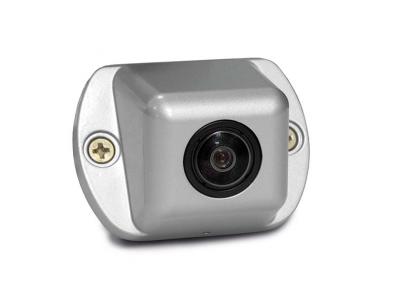

• 4 x BN360-100C cameras (36 x 61 x 46mm)
• 1 x Video output cable to connect to SELECT range monitor.

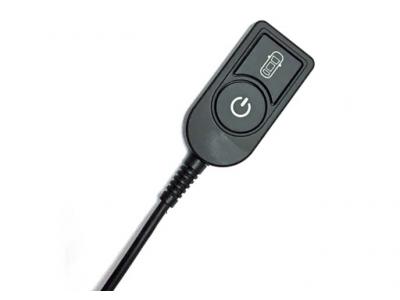

• 1 x set-up/view-select button
• IR receiver & remote control
• 1 x ECU power harness
• 1 x ECU interface harness

Please note: this kit does not contain a monitor or extension cables. Please see the table to the left for part numbers. A kit containing this system, a monitor, and cables is available HERE.

Features

• 360 image
• 19 different view modes
• 4 pre-defined configuration groups
• Configure & custom set up via monitor and IR remote control
• Left, right, reverse & speed signal triggers
• Configurable on-screen parking markers
• 3 x video outputs
• Ultra-wide viewing angle cameras (HxV) 185 x 142
• TV system: NTSC & PAL (via switch)
• Approvals: IP30 ECU, CE marked, E-Marked: UNECE R10 compliant, FCC approved, IC Approved, ISO 20653:2006, ISO 13766:2006, EN 13309:2010. Camera monitor system is R46 approved.

Dimensions

L 174 x H 101 x D 30mm

Alternatives / Accessories

Please note: this kit does not contain a monitor or extension cables. Please see the table to the left for part numbers. This system is NTSC. If you choose to add additional cameras they must also be NTSC.

Aftercare

A calibration kit is required for installation. Please contact us for more details.
