WAS W81 WORK LAMP WITH SWITCH

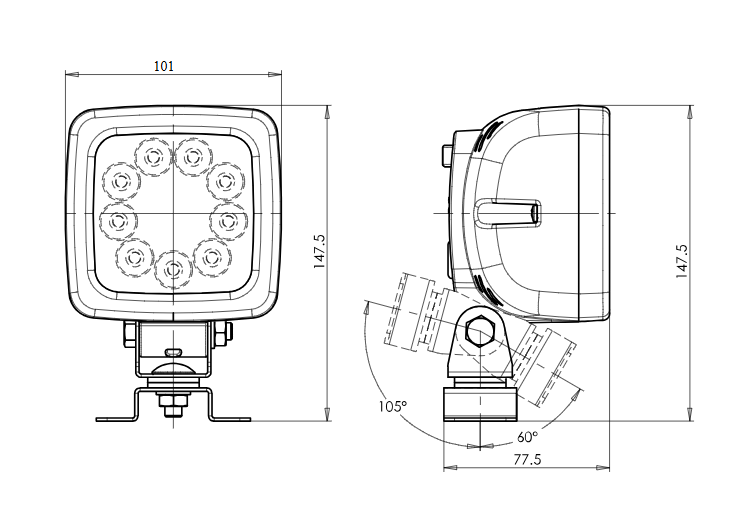

171041 work lamp drawing

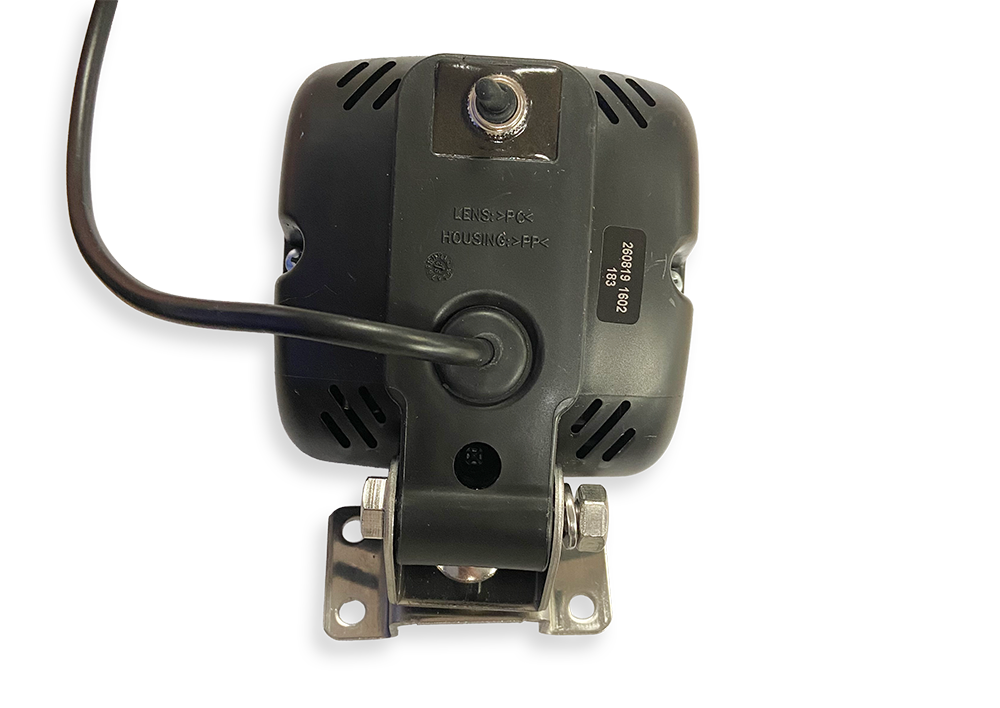

WAS W81 WORK LAMP WITH SWITCH

SKU: 171042

Universal W81 LED lamp is useful to light the field of working area in household work, and sailing. The lamp is resistant to surges in the system and its small size significantly increases mounting options. Thanks to very efficient LED diodes it is possible to illuminate a wide working area while keeping a small power consumption of only 14 W. The lamp body and its parts are made of the highest quality components, resistant to high and low temperatures and mechanical damage.

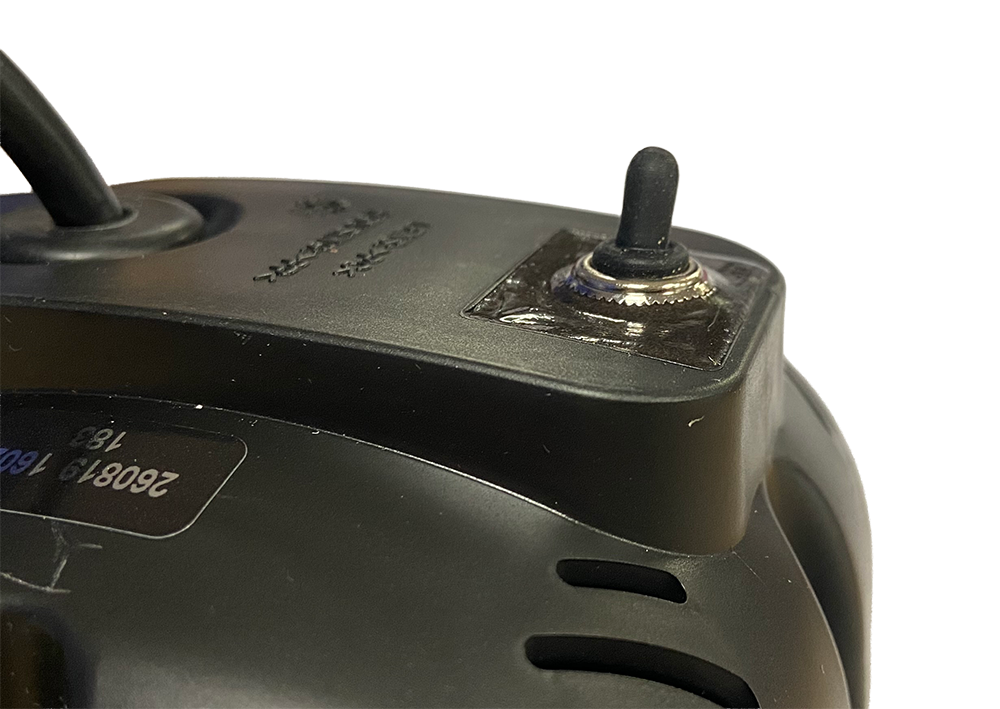

This version has a manual switch. Please see here for the version without a switch.

Features

  • 12/24 V
  • 1980/1700 lm (+/-25%)
  • 250 cm cable
  • 9 LED
  • IP69K
Enquire now
Voltage

12-24V
IP Rating

IP69K
Bulb

LED
Supplier

WAS

Technical Information

• Approval: E20 10R-03 2820

• Approval: AR 00 E20 1384 (only lamps 685 and 689)

• IP Class: IP66/68 – (resistance when immersed in water and spraying a powerful jet of water)

• Operating voltage: 10-35V

• Body: PP

• Light source: 9 LED x220 lm/dioda ~1980 lm +/- 10%

• Luminous intensity in the vicinity of the axis of reference: ~4400 cd +/- 10%

• Flux measured in the laboratory: ~1300 lm +/- 25%

• Luminous efficaty: ~70 lm / 1W +/- 25%

  • Tested & approved products

  • UK-wide delivery available
