Brigade 4 Channel 1tb Hard Disk Recorder

Brigade 4 Channel 1tb Hard Disk Recorder Slide Image
Brigade 4 Channel 1tb Hard Disk Recorder
Commercial vehicles, trucks, trailers, tractors, buses and coaches | 70mph
95 Logo

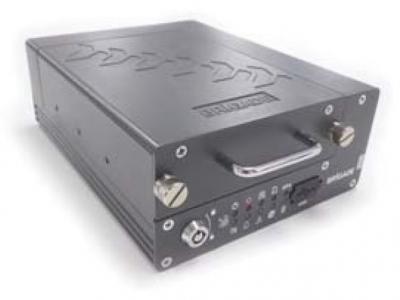

Record and store the data from your external cameras on this hard disc recorder with 1TB of storage space. Capturing and recording footage can assist in various disputes by offering:
Proof against insurance claims such as ‘crash-for-cash’ scams
Protection for drivers who may be wrongly accused
Provides irrefutable evidence in the case of accidents and legal proceedings
Encourages driver best practice, so less vehicle damage and accidents
Vandalism deterrent
Peace of mind for passengers and drivers


Records from up to four cameras simultaneously, including ADH high definition cameras.
Pre- and post-trigger recording of up to 60 minutes preceding or following an incident.
Lockable and interchangeable hard drive unit.
Simultaneous mirror-recording onto an in-built SD card, meaning there is always back-up of footage.
Built-in GPS for recording speed and location.
Eight configurable trigger inputs.
Audio functionality with high quality compression (monitor and/or camera must have microphone).
Motion detection for capturing footage when the vehicle is unattended.
G-sensor provides impact data and accelerating and braking.
Footage is protected by a non-visible digital watermark. Files that have been tampered with no longer play meaning a more reliable source of evidence for use in legal proceedings.
Search by date, time and triggered events such as G-Force, speed or motion detection.
Exported clips have embedded software – allows footage to be viewed without the need for additional software.
Compatible with Brigade’s vehicle CCTV camera monitor systems and Backeye 360 systems.
Approvals: CE marked, E-marked: UNECE R10 compliant, FCC Approved. IC Approved, RoHS2 compliant


L 190 x H 75 x D 222mm
